What is a telescope?

A telescope is an optical device used to observe objects at great distances, such as celestial bodies like stars or planets, or distant terrestrial objects. It collects a large amount of light through the wide aperture of its objective lens, enabling us to view objects that would otherwise remain invisible to the naked eye due to insufficient light collection. Additionally, the eyepiece contains another lens that magnifies the formed image, allowing us to see distant objects clearly. Depending on the type of telescope, this final image may appear inverted.

What are the 2 types of telescopes?

Telescope optics utilize either lenses or mirrors. Telescopes that rely solely on lenses are known as refracting telescopes, while those incorporating mirrors are referred to as reflecting telescopes.

How are telescopes made?

Telescopes use lenses or mirrors to redirect light and create a clear, magnified image of distant objects. Reflecting telescopes use mirrors, while refracting telescopes rely on lenses to focus light. The objective lens or mirror collects as much light as possible from the observed object. This gathered light is then focused by the objective lens or mirror and directed toward the observer’s eyes, producing a clear, magnified image on the retina.

Mirrors or Lenses- which is better?

Modern telescopes predominantly use mirrors because they address many challenges associated with lenses. Although crafting a perfect mirror is difficult, creating a flawless lens is even more complex. Large lenses are heavy, making them hard to maneuver and maintain in the correct position. As lenses increase in size, they become thicker, reducing the amount of light that passes through. Additionally, lenses must have perfectly smooth surfaces on both sides, as any imperfections distort the image.

Mirrors, on the other hand, are lighter for their size and require only a single surface to be smooth and reflective. They are easier to clean and polish, and large mirrors only need the correct curvature for optimal performance. Although mirrors produce an inverted image, this can be corrected with an additional mirror.

Most space telescopes, such as the Hubble Space Telescope, the Spitzer Space Telescope, and the James Webb Space Telescope, use mirrors because they are lightweight and efficient.

What is the best smallest telescope for science classes?

Telescopes are large optical devices typically accessible only in high-tech laboratories, such as the Jet Propulsion Laboratory at NASA. However, to demonstrate the basic principles behind how telescopes work and provide a foundational understanding of telescope optics, Labkafe has designed the Astronomical Telescope model. This model uses two convex lenses to showcase the functionality of an astronomical telescope. The image produced is virtual, inverted, and highly magnified. This Astronomical Telescope model offers an affordable alternative to real telescopes, making it the ideal telescope for science classes.

Telescope for science classes by Labkafe

Astronomical Telescope for Science Classes

The Labkafe Astronomical Telescope comes in three variations, each designed to meet the demonstration needs of schools:

Astronomical Telescope with Tripod Stand

This model offers a high-quality design, ideal for demonstrations.

Skywatcher Refractor Telescope with AZ2 Mount

Featuring an achromatic refractor with a 70mm lens and a focal length of 700mm, this telescope provides a magnification of 140X.

Skywatcher Refractor Telescope with EQ2 Mount

This model is equipped with a 90mm achromatic lens and a focal length of 900mm, offering a magnification of 180X.

These telescopes are suitable for both terrestrial and astronomical observations. While distant stars may not be visible, the outlines of celestial bodies like Saturn and the Moon can be clearly observed. This gives students a tangible understanding of a telescope’s capabilities, allowing them to visualize the wonders of the universe.

Small telescope for science classes- price in India

The Astronomical Telescope Model by Labkafe offers the following varieties:

1. Astronomical/Terrestrial Telescope with Tripod Stand
   • Price: Under ₹10,000
2. Skywatcher Refractor Telescope with AZ2 Mount
   • Price: Under ₹30,000
3. Skywatcher Refractor Telescope with EQ2 Mount
   • Price: Under ₹60,000

To get your own telescope for science classrooms, contact our lab experts today!

The post Guide to Selecting a Telescope for Science Classes appeared first on Labkafe Blog.

Labkafe has made significant advancements in providing high-quality school laboratory equipment. Our ISC Physics Lab Equipment Package is specifically designed to address the challenges schools face when purchasing a comprehensive physics lab setup.

Features of the ISC Physics Lab Equipment Package

This package is ideal for conducting all ISC Physics experiments for classes 11 and 12. It includes:

• All necessary Physics lab equipment, apparatus, and instruments as per the ISC syllabus.
• Equipment designed for a class of 30 students to use simultaneously.
• Completely FREE OF COST Detailed Project Report, as per your requirements, showing laboratory layout and planning.
• Onsite installation and demonstration of the equipment and apparatus.
• LK-secured products with a one-year onsite warranty and technical support.
• Coverage for any damage during transit.
• Provision of GST receipt
• Worldwide shipping
• Pay online or upon delivery

Download the detailed list of ISC physics lab equipment.

General Rules for ISC Physics Practical

Follow these rules when instructing students, in addition to using reliable, high quality lab equipment:

• Ensure the polarity of cells and meters, their range, zero error, and least count are checked before use.
• Record all observations consistently, adhering to the least count of the instrument.
• Always include correct units with recorded observations.
• Avoid parallax errors during measurements.
• Round off all calculations to the specified decimal place or significant figures, as directed in the question paper.
• Follow all instructions and guidelines provided in the equipment manual.

Download the complete ISC Physics practical syllabus for class 11 and 12.

The post ISC Physics Lab Equipment Package- Complete Apparatus List appeared first on Labkafe Blog.

Dry lab practices originated from the need to streamline labor-intensive research. They aim to minimize the number of active cases or samples processed on the wet lab bench, reducing the required man-hours to achieve the desired results.

The debate, however, is whether the dry lab produces better results. Is it as good as wet lab research, and which is more difficult to perform?

Integrated Wet Lab and Dry Lab

The human race conducts scientific research to achieve results that are beneficial for them. With this in mind, researchers might benefit from a more holistic approach that integrates both dry and wet lab practices, often in that particular order. Dry lab techniques have developed to integrate into wet lab protocols. Both complement each other to create streamlined protocols.

Researchers use dry lab techniques to eliminate junk samples. After this wet lab tools are used. Wet lab techniques finally render the required result, indicating what the researcher wants to know.

Why does lab design matter?

Lab design has a crucial role to play in labs that interconnect dry and wet labs. Therefore, it is crucial to plan the lab setup so researchers can move seamlessly from one platform to another. Often, labs integrate dry and wet lab applications in the same floor space or the same lab setup. Dry lab research often takes place in planned areas with desks and chairs in the laboratory. This is separate from the space used to store reagents and conduct experiments. These might cause harm to the computers or machines used for dry lab research.

At Labkafe, our experts create a customized lab plan that suits your research. With this, you can effectively maneuver between dry and wet lab exercises, thereby minimizing any hassle that might arise due to interdisciplinary research practices. Contact our lab experts for a free lab planning consultation to understand how you can create a research space suited uniquely to your needs.

Role of Lab Design in Wet Lab and Dry Lab

Wet labs deal with liquids, biological specimens, and hazardous chemicals. These spaces are separate from the computation and engineering facilities in the dry lab. Supercomputers and next-generation sequencing facilities often require dedicated rooms or floors, similar to electron microscopes and mass spectrometers. However, most data processing occurs on high-performance laptops or desktops located closer to and integrated with wet lab facilities. This arrangement minimizes time lost when switching between tasks.

Lab safety in Lab Setups

Include sufficient eyewash stations, emergency showers, and fume hoods to deal with contingencies. We keep occupational safety standards in mind. Waste management is another critical component of safety. Always plan dedicated waste storage and disposal facilities.

Separate spaces accommodate heavy dry lab equipment, while electricity and water are available for emergencies. To prevent integrated circuits from malfunctioning due to moisture, control humidity levels. Include emergency fire and safety equipment to address risks associated with high-voltage electricity. Additionally, design the furniture to absorb and dissipate static electricity and heat effectively.

Customized lab design solutions

The equipment must not vibrate or resonate with the structures they rest on, as this causes faster wear and tear. Incorporate flexibility in the design to address this. Allow wet labs to be converted into dry labs and vice versa.

This provides unparalleled flexibility when planning and implementing the setup and performing experiments. An interesting example of this flexibility is how 3D printers, once occupying entire rooms, are now available in benchtop versions.

This flexibility requires the advice of experts for effective implementation. At Labkafe, our design experts will guide you through a seamless experience of planning your brand-new integrated lab. This will ensure that both dry and wet labs are placed on the same pedestal. Contact our lab experts for a free lab planning consultation today!

The post Wet Lab and Dry Lab- One Stop Design Solutions appeared first on Labkafe Blog.

Building a Composite Science Lab addresses the gap in traditional learning in India, in addition to emphasizing hands-on, practical application. While nations like the United States, Japan, and South Korea boast skill training rates of 52%, 80%, and 96%, respectively, only 2.7% of India’s workforce has formal skill training.

Because these labs are designed for students from Classes 6 to 12, these labs must align with the National Education Policy (NEP) 2020 and the National Curriculum Framework for School Education (NCF-SE). Therefore, the lab promotes interdisciplinary learning, collaborative education, and the use of technology to formulate hypotheses, conduct experiments, and analyze data.

Additionally, beyond academics, the lab incorporates artificial intelligence, machine learning, programming, and robotics kits, enabling students to explore concepts like self-driving cars and facial recognition. Ready-to-use plug-and-play kits simplify the process. Additionally, the mandate provides for teacher training, ensuring that the new generation of teachers are adept at handling and imparting cutting-edge knowledge, tools and resources for maximum student benefit.

Importance of Composite Science Labs

Skill labs prepare students for real-world problem-solving. Hence, they foster intelligence, character, and creativity through experiential learning. Students not only perform experiments but also develop and defend their conclusions, building confidence and critical thinking skills.

Requirements for Building a Composite Science Lab

According to the Central Board of Secondary Education (CBSE), a well-equipped lab requires multiple apparatus, some of them are listed below:

1. Space and Infrastructure:
   • A 600 sq. ft. lab with 40 seating facilities.
   • Demonstration table with a sink and water tap.
   • Eight sinks with running water.
   • Notice board for lab rules, activities, and timetables.
   • Proper storage with cupboards to keep consumables and non-consumables dust- and vermin-free.
   • Safe storage for flammable chemicals.
2. Safety Measures:
   • Waste bins for proper waste management.
   • Exhaust systems for toxic chemicals.
   • Fire extinguishers, emergency exits, and a first-aid kit.
3. Basic Lab Equipment:
   • Physics: Optical bench, spring balance, magnetic compass, and prism.
   • Chemistry: Bunsen burners, conical flasks, periodic table models, and indicators like litmus paper.
   • Biology: Specimens of plants and microorganisms, in addition to human organ models, and microscopes.

Floor plan model for Composite Science Lab by the CBSE (Source)

Challenges in Building a Composite Science Lab

Building a composite science lab can be challenging due to multiple factors:

• Firstly, there is a lack of awareness regarding the required equipment and furniture
• It is difficult to source reliable suppliers, and
• Coordinate interdisciplinary requirements.
• Additionally, incorporating emerging technologies like robotics, coding, and AI requires adaptability and tailored expertise.

Composite Science Lab by Labkafe

Labkafe provides fully customizable packages for Composite Skill Labs. These labs are tailored to CBSE requirements, in addition to being flexible and customizable according to the requirements of the school. Hence, the kits are designed for seamless integration into the physics, chemistry, and biology laboratory. We provide both complete lab packages, and customized lists, as per the needs of the organization.

Here’s a subject-wise list of some of the most sought-after items.

Physics Lab Equipment:

• Spring balance, voltmeter, ammeter, resistance boxes.
• Concave and convex mirrors and lenses.

Chemistry Lab Equipment:

• Test tubes, beakers, and conical flasks.
• Kipp’s apparatus and periodic table models.
• Indicators like litmus and methyl orange.

Biology Lab Equipment:

• Models of human organs (brain, eye, heart, etc.).
• Prepared slides, microscopes, and staining solutions.
• Specimens of plants and microorganisms.

Labkafe ensures all consumables and non-consumables meet CBSE standards, additionally providing turnkey solutions with robust support for installation, training, and maintenance. Contact our lab experts for a free, customized school lab plan today!

The post Building a Composite Science Lab for Your Organization appeared first on Labkafe Blog.

Science laboratory equipment includes instruments and apparatus used to demonstrate scientific principles, helping students understand theoretical concepts and connect them to real-life phenomena. This equipment also allows for the validation and verification of scientific ideas. Successful experimental results reinforce classroom theories, translating abstract concepts into practical, observable experiences.

In a controlled, hazard-free environment, students observe scientific principles at work under the guidance of instructors. Key fields that utilize laboratory equipment include physics, chemistry, biology, and mathematics.

Benefits of science laboratory equipment in schools

Translating theory into practice is crucial in all aspects of life. Just as people find evidence more convincing than mere assertions, students need educators to demonstrate scientific concepts for them to truly understand and believe in their lessons.

• When students work together on experiments, they develop teamwork skills that benefit them later in life. Practical experimentation also builds the dexterity needed to handle precise equipment and perform detailed research. This skill becomes critical in advanced study and research roles.
• School laboratories offer students their first experience with hands-on research. Validating scientific theories in this environment fosters respect and enthusiasm for the subject. This encouragement leads students to pursue research careers and, eventually, become scientists.
• Thus, investing in quality scientific equipment is essential for schools aiming to nurture future scientists. This investment also helps raise their reputation by producing notable alumni.
• Research and experimentation also instill curiosity and excitement for science. While theoretical lessons can become monotonous, hands-on lab classes provide a stimulating break, motivating students to learn.
• Critical thinking and creativity are further developed in lab sessions, laying a foundation for independent thought that is essential in later scientific endeavors. School lab experiments may lack the rigor of professional research but are invaluable in building these skills.
• Memorization and retention of core concepts are essential for exam success and future application. Practical lessons aid visualization, helping students retain scientific principles for a lifetime.

Labkafe has been a leading provider in the school laboratory equipment industry, supplying top-quality lab apparatus that equips schools to foster successful, innovative students.

Science laboratory equipment required for schools

High-quality, up-to-date laboratory equipment is essential for effective school research and demonstration experiments. Without modern apparatus, students risk encountering faulty results or physical hazards. They also miss the chance to build the dexterity and skills needed for advanced labs later in their academic careers.

For students to meet national standards and feel confident in their abilities, Indian schools must invest in durable, advanced lab equipment. This investment encourages competitive skill development.

Here are essential laboratory items:

• Microscope: This tool focuses light on specimens and uses lenses to magnify objects such as bacteria, tissue sections, and minute plant structures.
• Test Tubes: Manufacturers make these tubes from heat-resistant glass, allowing them to withstand direct flames and enabling users to prepare and heat various chemicals.
• Beakers: Crafted from durable borosilicate glass, Griffin and Berzelius beakers store and heat larger liquid quantities.
• Bunsen Burner: A primary heat source provides a quick, adjustable flame of both oxidizing and non-oxidizing types, although users can also employ water baths.

The quality and durability of lab equipment are crucial, as reliable construction ensures both safety and longevity. Labkafe’s school lab packages offer high-quality lab apparatus tailored to meet educational needs. Connect with Labkafe’s lab experts for guidance on selecting the right equipment for your institution.

Essential precautions for school laboratories

Laboratories provide an exciting learning environment for students, but they must conduct experiments under proper supervision and implement safety measures.

• Lab authorities should establish clear rules detailing how and when students perform experiments. They must closely supervise these activities to ensure adherence and maintain discipline.
• Students should avoid frivolous activities, as well as eating or drinking in the lab.
• Students should handle chemicals carefully, following specific protocols for mixing and heating.
• Students must wear safety goggles, lab coats, and closed shoes, while they must restrict loose clothing, open hair, and sandals.
• Creating a trusting environment is essential, encouraging students to report any incidents without fear.

Teachers play a key role by handling situations patiently, offering clear instructions during stressful or dangerous situations. Discipline should be enforced only for repeated offenses. Teachers’ calm and responsible behavior models how to handle challenges effectively. This approach helps students build both technical and interpersonal skills while learning in the lab.
At Labkafe, we provide a range of readymade lab equipment packages for schools and colleges. This reduces the effort of schools in figuring out which lab equipment is needed while building new school labs or renovating labs. Contact our lab experts for a free lab planning consultation.

The post Why should schools have science laboratory equipment? appeared first on Labkafe Blog.

The power of hydrogen, or pH (also called the potential of hydrogen), measures the concentration of hydrogen ions in a solution. The formula for calculating the pH of a liquid is:

pH = -log [H⁺]

A higher pH indicates lower acidity and higher alkalinity in the solution. Conversely, a lower pH means higher acidity and lower alkalinity.

What is the effect of Power of Hydrogen pH on humans?

The concentration of hydrogen ions in a solution greatly affects humans. This concentration determines whether a substance is acidic or basic. But why should we care about the acidity of things? Highly acidic substances can harm our skin and internal organs if we come into contact with them. For example, battery acid is highly acidic and can cause severe damage upon contact.

Now, think about it: why does acidic stuff burn your skin?

Acids cause burns primarily due to their protons, or free H⁺ ions, which are loosely bound to an electronegative atom within the acid. Most acids consist of an electronegative atom bonded to a hydrogen ion or proton. These electronegative atoms tend to release the proton readily if it finds a lone electron pair to stabilize its positive charge.

In this process, the electronegative atom bonds with a more positively charged entity that stabilizes it more effectively. Consequently, the acid donates the lone hydrogen ion to the nearest lone electron pair. This aligns with the Lowry-Bronsted definition of acids, which states that acids donate protons.

For this reaction to occur, a lone electron pair must be available. Acids donate H⁺ ions to obtain electrons, but how does this relate to the sensation of burning? Specifically, why do strong acids cause more severe burns?

Strong acids release their protons more easily, which increases their capacity to cause burns. Our bodies are made up of proteins, which fold into precise structures to function correctly. When these structures are disrupted, proteins lose their ability to function. When a strong acid comes in contact with skin, it donates protons to the proteins in the skin.

Protein unfolding

Proteins accept these protons due to the presence of carboxylate groups, which carry a negative charge. This negative charge participates in hydrogen bonds and salt bridges, which contribute to the stability of the protein’s structure. When the carboxylate group accepts a proton from the acid, it loses its negative charge, which disrupts the salt bridges and hydrogen bonds. As a result, the protein loses its secondary and tertiary structures and collapses, becoming unfolded.

The lone pair of electrons from the carboxylate group of the protein scavenges protons from the acid, causing the collapse of the protein’s secondary structure. This collapse disrupts the protein’s function, as the secondary structure is essential for its proper activity.

When this structural collapse occurs, the cells fill with nonfunctional proteins. We experience this process as a burn—acid protons alter enough proteins in the cells, causing them to clump into nonfunctional masses. This is the damage we see when tissue is burned by a strong acid.

How to measure acidity and basicity?

The mathematical value of power of hydrogen (pH) is determined by the formula:

pH = -log [H⁺]

But how do we measure hydrogen ion concentration in a solution? One way to do this is by using a pH meter, also known as a potentiometric pH meter. We will explore why it has this name shortly.

To measure pH, immerse the pH meter into the solution. The meter measures the pH directly and displays the result on a digital screen, showing the solution’s pH value.

A higher pH or power of hydrogen indicates lower acidity and higher alkalinity in the solution.

Conversely, a lower pH means higher acidity and lower alkalinity.

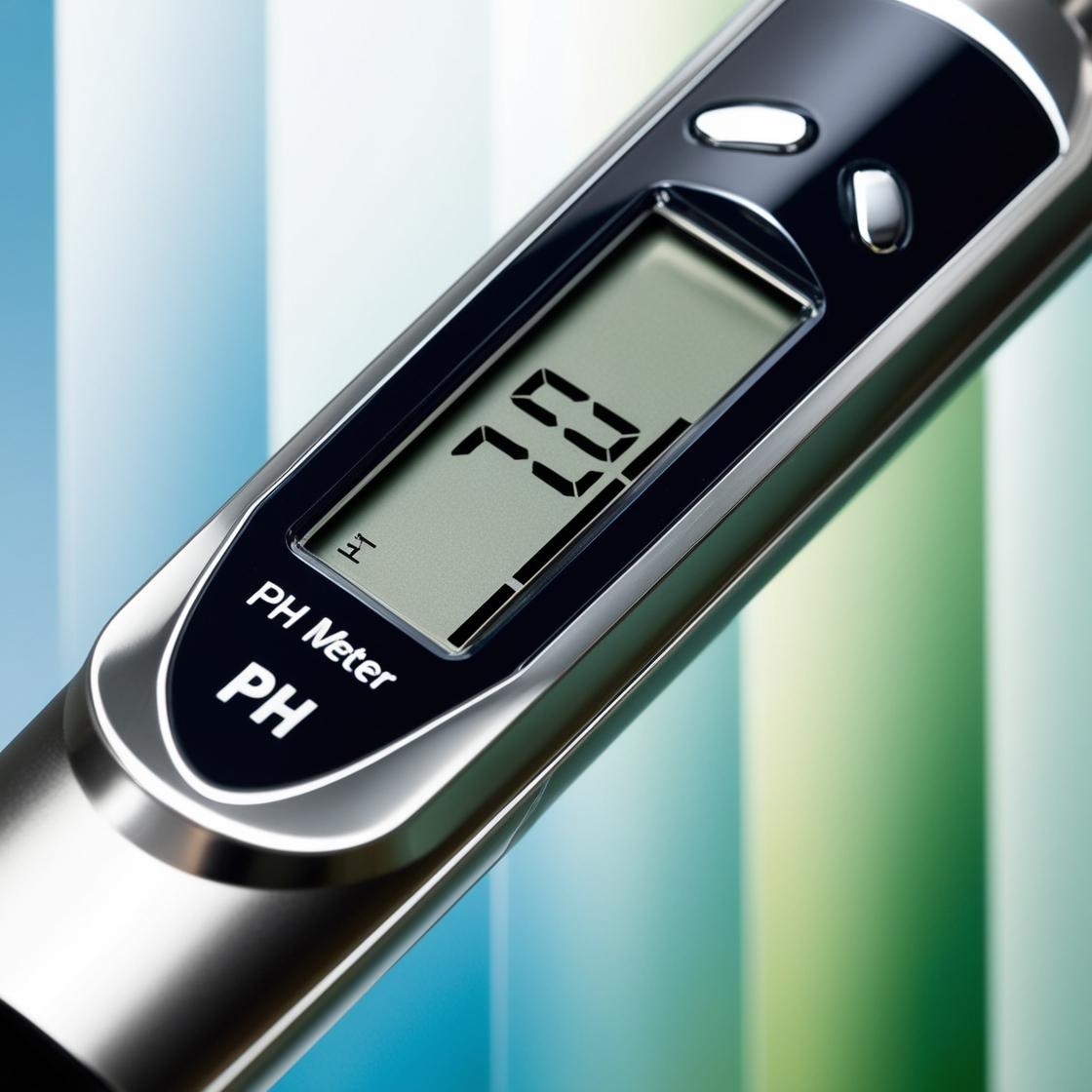

What is a pH meter?

A pH meter consists of two electrodes: a glass electrode and a reference electrode. Both electrodes have a silver wire coated with silver chloride. The silver metal in the electrode can lose electrons and become a positively charged silver ion (Ag⁺). This reaction is reversible, meaning the silver ion can also gain electrons and form metallic silver.

Another important reaction is the interaction between silver ions and chloride ions to form silver chloride (AgCl). The reference electrode is filled with saturated KCl, while the glass electrode contains 0.1M HCl.

The glass electrode has a thin glass bulb made of silica (SiO₂). The oxygen atoms bound to the silicon atoms on both the inner and outer surfaces of the glass are negatively charged. These negatively charged oxygen atoms attract positively charged hydrogen ions (H⁺). When bound by H⁺ ions, a hydrated gel layer forms on both sides of the glass bulb. The hydrogen ions cannot pass through the glass layer; they can only bind to the surface of the glass bulb.

The hydrated gel layer is about 10 nm thick, while the glass layer itself is approximately 0.1 mm thick. The glass electrode half-cell is connected to the reference electrode. The reference electrode has a porous ceramic plug, which allows the diffusion of ions and helps complete the circuit.

Source- Microbe Notes

How does a pH meter work?

Power of Hydrogen in Acidic solutions

When the solution is acidic and you immerse the pH meter in it, more H⁺ ions bind to the outer layer of the glass bulb. This causes the region outside the glass electrode to become more positively charged, while the inner layer, with fewer H⁺ ions, remains less positively charged.

The inner solution of the glass electrode contains HCl, which releases H⁺ ions. These ions help balance the charge across the glass bulb by neutralizing the charge from the binding of hydrogen ions in the outside solution. This process causes the concentration of H⁺ ions inside the glass electrode to decrease slightly.

However, the total number of H⁺ ions inside the glass electrode remains constant. As the H⁺ concentration is constant, the pH also remains constant. But since the free H⁺ concentration decreases, the concentration of free Cl⁻ ions increases.

At the silver wire, silver atoms lose electrons and bind with chloride ions to form silver chloride (AgCl). The electrons freed from the silver atoms are present in the silver wire of the electrode. These electrons create an electric current, which generates a voltage in the silver wire. The device measures the change in potential of the glass electrode and silver wire against the reference electrode, which serves as a standard for the glass electrode’s potential. Visit this site for a video explanation.

Power of Hydrogen in Alkaline solutions

In an alkaline solution, the concentration of H⁺ ions in the outer layer of the glass electrode is lower than the concentration inside the glass electrode. The outer region becomes less positively charged, while the inner layer, with more H⁺ ions, becomes more positively charged. To balance the net charge, H⁺ ions from the inner layer are released into the solution inside the glass electrode. This increases the concentration of free H⁺ ions in the glass electrode. To neutralize this excess of H⁺ ions, AgCl from the silver wire dissociates into silver and chloride ions. The chloride ions balance the extra hydrogen ions in the solution.

Now, excess Ag⁺ ions are present in the solution. These ions accept electrons from the electrode and gain electrons to become metallic silver, which then deposits onto the electrode. Since the glass electrode now gives electrons, it becomes positively charged, and the potential changes. This change in potential is measured in reference to the reference electrode.

In both acidic and alkaline solutions, the potential difference is a measure of the power of hydrogen or pH value. The device translates this value into a pH reading, which appears on the digital screen. The pH meter provides an accurate reading when properly calibrated. Visit this site for a video explanation.

Water has a pH of roughly 7

Where to buy a pH meter?

We at Labkafe provide the best quality lab equipment, including pH meters calibrated for daily laboratory use. To ensure accurate readings, make sure that the probe of the pH meter does not touch any surfaces. Clean it with distilled water before and after using it in a new solution. Contact the experts at Labkafe today for a quote and to get a wide variety of lab equipment!

The post How to Teach the Power of Hydrogen (pH)? appeared first on Labkafe Blog.

Kinetic and potential energy are a function of work. It is defined as the product of the force applied on a body and the displacement of the body caused by this force. Mathematically, it is expressed as:

W = F × d

where W represents work, F is force, and d is displacement. Work occurs when a force causes a body to move. In fact, work is done by the force acting on the body.

This image demonstrates the concept of work: it shows how work is the product of the force and the displacement of the body from the initial point A to the final point B.

It is interesting to note that if d is zero, then the work done is also zero. This means that when a force is applied but there is no displacement, no work is done, regardless of the force’s magnitude.

So, if you push a wall but cannot move it, even if you feel tired, you haven’t done any work—according to physics!

When Hercules stopped a moving boulder with his shoulder, did he do work? Yes, he did negative work. In this case, the direction of the force he applied was opposite to the direction of the boulder’s displacement, resulting in negative work.

Work is always measured in joules (J), which is a product of Newtons and meters.

Now, the question is, can a moving body do work? By virtue of its motion, the answer is yes. A moving body can do work because it can use its kinetic energy.

What is kinetic energy?

Energy is stored work. In other words, it is the energy within a body that can be used to perform work. So, when a body is moving, it possesses kinetic energy, which it can use to do work. Kinetic energy exists because of the motion of the body. As long as the body is moving, it has kinetic energy.

Kinetic Energy (KE) = 1/2 mv²

where KE represents kinetic energy, m is the mass of the object, and v is its velocity.

Hence, velocity is a measure of kinetic energy, or it contributes to kinetic energy. The work-energy theorem relates the concepts of kinetic energy to work. Work is done when the kinetic energy of a body changes. In other words, the difference between the initial and final kinetic energy equals the work done.

For example, when you push a rolling ball up a slope, it loses kinetic energy as its speed decreases and eventually reaches zero. During this process, the ball does work, and kinetic energy transforms into work done.

Can kinetic energy be negative?

From the equation above, we can see that kinetic energy depends on the mass of the body and the square of its velocity. Since mass can never be negative and is always finite, and the square of velocity is always positive, kinetic energy is always a positive quantity, regardless of the direction of motion. Therefore, kinetic energy depends on the speed of the body, not its velocity.

Is kinetic energy the only form of energy a body can possess? What about stationary bodies—can they not possess energy to do work? Of course, they can. Stationary bodies can possess various forms of energy, such as heat energy, chemical energy, or muscular energy.

What is potential energy?

In this discussion, we will focus on a type of energy known as potential energy, which is an umbrella term that includes all these other forms. Potential energy is stored in a body due to its position, often by virtue of its height. Among these forms, the one we will demonstrate is gravitational potential energy, which is especially important in understanding stored energy in a body.

Gravitational Potential Energy (PE) = m × g × h

Where:

m is the mass of the object,

g is the acceleration due to gravity (typically 9.8 m/s² on Earth),

h is the height of the object above a reference point.

Can potential energy be negative?

A good example of negative potential energy is electrons orbiting around the nucleus and planets orbiting the Sun. Attractive forces, like gravity or electromagnetism, hold these toward a central point, requiring energy for them to escape their orbits. This binding energy is called negative potential energy.

Transformation of potential energy into kinetic energy

We have learned that kinetic energy is capable of doing work. So, kinetic energy can be used to achieve work. For example, when you push a moving ball to roll up a slope, it uses its speed to move upward and effectively does work. But what about a body raised to a height—can it also achieve work? Can it move up a slope using its speed or convert its gravitational potential energy into work?

While this isn’t directly possible, gravitational potential energy (or simply potential energy) first converts into kinetic energy, which can then be used to do work. How does potential energy convert into kinetic energy? When you release a ball from a certain height, it falls and gains speed. This increase in speed boosts its kinetic energy, allowing it to do work.

For example, a ball raised to a certain height can roll down a slope, then use the speed gained on the downward slope to climb an upward slope. In this way, potential energy can ultimately be used to achieve work.

The formula showing the conversion of potential energy to kinetic energy is as follows:

m × g × h = 1/2 × m × v²

where:

m is the mass of the object,

g is the acceleration due to gravity,

h is the height (initial potential energy),

v is the final velocity (related to the kinetic energy gained).

Thus, as potential energy converts into kinetic energy, it increases the speed of the body. This speed then enables it to do work, as demonstrated by the Kinetic-Potential energy model by Labkafe here.

Example of how potential energy affects kinetic energy

In the above model, the straight slope gives the ball a certain amount of potential energy, which converts into kinetic energy as the ball descends, giving it speed.

Conversely, on the curved slope, fascinating energy transformations take place (follow stages 1,2 and 3). In the first half, as the ball descends, it gains velocity due to the conversion of potential energy into kinetic energy. This speed enables the ball to climb the upward slope that follows.

Balls are released at the same instant from starting point.

Balls in motion along the two paths.

Ball following the curved path reaches the end point first.

However, when the ball begins its descent again, it no longer has an uphill slope to slow it down. Instead, it moves onto a downhill section, which allows it to gain even more speed. This added boost, combined with the increased height of the second slope, enables the ball on the curved path to reach the endpoint faster than the ball on the straight slope.

This scenario demonstrates how the transformation of potential energy into kinetic energy gives the ball on the curved slope an advantage. The curved slope allows the ball to maintain and build upon its speed, helping it reach the endpoint before the ball on the straight slope.

How does experimental demonstration help?

This apparatus from Labkafe demonstrates how visualizing kinetic and potential energy is essential to truly understand these core energy concepts. With this model, students gain a hands-on understanding, and teachers have an effective tool to explain the critical role of energy transformations.

Incorporate this demonstration kit into your curriculum to give students a clearer grasp of how work, kinetic energy, and potential energy interconnect. This is a must-have resource for secondary schools aiming to deepen students’ understanding of energy dynamics in a tangible way.

Contact our Lab Experts for a quote today!

The post How to Teach Kinetic and Potential Energy? appeared first on Labkafe Blog.

A pendulum is a fascinating device that consists of a ball-shaped mass, known as the “bob,” suspended by a theoretically massless string from a fixed point. An extension of this is the coupled pendulum, which we shall study in a while. When you displace this bob from its starting position, it begins to swing back and forth in a smooth, predictable arc. This swinging, or oscillation, is driven by gravity, with each swing covering a distance called the “amplitude.” The time it takes for the pendulum to complete one full swing is known as the “time period.” The inverse of this value is called the “frequency of oscillation”, which indicates the number of oscillations of the pendulum per second. When set in motion, the pendulum swings continuously due to its inertia, maintaining a steady rhythm that has proven invaluable in timekeeping.

How do pendulums work?

Interestingly, a pendulum’s time period and frequency depend on the length of the string and the pull of gravity. They do not depend on the bob’s mass. For example, if you replace a sponge ball with a metal gong, their time period will remain the same. This happens regardless of their difference in mass, as long as the length of the string and the acceleration due to gravity remain the same.

The formula for time period T (and frequency f) shows why this is the case.

T= 1/f=2π√L/g

Where L=length of the string and g= acceleration due to gravity. Hence these are the factors that affect T and f.

What is a coupled pendulum?

In a coupled pendulum setup, two simple pendulums are connected by a string or a solid rod, creating a fascinating interaction. This connection introduces complexity, making it ideal for studying unique physical phenomena. A single pendulum traditionally keeps time in classic clocks. However, a pendulum setup can also measure gravitational acceleration. This acceleration varies slightly across different locations on Earth. By observing variables like the period (T) and the length (L) of the pendulum, we can calculate gravitational acceleration precisely using the known formula given above. However, a coupled pendulum can be an excellent tool for studying and verifying various physical phenomena, as we’ll explore below.

A coupled pendulum. Source- Physics Forums

Theory of a coupled pendulum

It beautifully demonstrates several physical phenomena. When you set one pendulum in motion by displacing it from its resting position, it continues to oscillate due to inertia of motion. This motion then influences the second pendulum, causing it to oscillate as well. Interestingly, as the first pendulum’s amplitude gradually decreases, the second pendulum’s amplitude increases. This transfer continues until the second pendulum oscillates with the same amplitude as the first. However, the process reverses, leading to a back-and-forth exchange of energy between the two pendulums. Eventually, this alternating motion fades, and both pendulums come to a stop.

Verifying theories of physics with coupled oscillation

This helps us demonstrate the following physical phenomenon-

Resonance in a coupled pendulum

When you set a pendulum in motion, it oscillates at a specific, unchanging frequency, known as its resonant frequency. Interestingly, even if you increase the amplitude (the height of each swing), the time period or frequency remains constant. This frequency is determined solely by the length of the string. For any pendulum with a fixed length, the oscillation frequency stays the same, regardless of amplitude.

The resonant frequency is a natural frequency that’s unique to a particular object—like this pendulum. When an object oscillates at its resonant frequency, it reaches maximum oscillation. At resonance, energy transfers most efficiently between objects vibrating at the same frequency, creating the strongest and most sustained oscillations.

A coupled pendulum setup demonstrates this concept clearly. Since both pendulums have the same string length, they oscillate at the same resonant frequency, allowing them to resonate together effectively. When the first pendulum begins to oscillate, it transfers energy through the connecting beam at the top. This energy transfer is highly efficient because it occurs at their resonant frequency.

As the first pendulum swings, it causes the second pendulum to increase in amplitude. This process continues until all the energy from the first pendulum is transferred to the second. At that point, the second pendulum oscillates with the same amplitude as the first. This complete transfer of energy showcases the power of resonance, which the fixed lengths of both pendulums in this setup make possible.

Conservation of energy in a coupled pendulum

The law of conservation of energy states that energy can transform from one form to another, but it cannot be created or destroyed. The coupled pendulum clearly demonstrates this principle. As the first pendulum transfers energy to the second, and vice versa, we observe the amplitudes of both pendulums gradually decrease over time. Energy transfers efficiently during this exchange. However, it’s important to note that there is a loss of energy in the process.

Friction with the air causes some energy to dissipate as heat, leading to a loss of energy rather than a full transfer between the pendulums. The total energy within the system remains conserved, meaning it doesn’t vanish. However, it transforms into other forms, such as thermal energy due to friction. Therefore, while the law of conservation of energy holds true, friction and heat generation affect the dynamic system. They contribute to the overall energy transformations at play.

Potential energy to kinetic energy in a swinging pendulum

When you raise the pendulum to a certain height and displace it to the side, it gains potential energy (PE). As the pendulum oscillates and reaches the lowest point in its swing, the system completely converts potential energy into kinetic energy (KE). At the highest points of oscillation, potential energy is highest, and the pendulum is momentarily at rest. Here, the kinetic energy is lowest. At the lowest point of its swing, kinetic energy is at its maximum, while potential energy is at its minimum. This continuous transformation between potential and kinetic energy is a fundamental aspect of the pendulum’s motion. It illustrates the principles of energy conservation in action.

Transformation of potential energy into kinetic energy and vice versa in a pendulum. Source – StudySmarter

Wave motion of a swinging pendulum

Wave motion involves the repeated oscillation of particles. Sound waves arise from the oscillation of air particles. Water waves, such as transverse waves, form when we drop a pebble into water. The pendulum also exhibits wave motion, and this concept becomes evident when we explore it further. Our blog on wave motion explains this in detail. The image provided here illustrates the oscillations of a pendulum about its mean position.

The wave motion of a pendulum. Source- The Physics classroom.

Why do you need a coupled pendulum?

The coupled pendulum demonstrates the laws of physics beautifully, showcasing multiple phenomena. These concepts are often abstract and challenging to visualize. However, this pattern and blog aim to make them clearer for students. To support this, Labkafe has created a coupled pendulum model that allows you to demonstrate four unique, interdisciplinary concepts in physics. These demonstrations help students strengthen their ability to make connections across various principles.

Contact our lab experts today to get amazing demonstration models for your science classrooms!

The post How to Teach the Concept of a Coupled Pendulum? appeared first on Labkafe Blog.

What are modern STEM classrooms?

STEM education is a relatively recent phenomenon in the learning space, and it seeks to challenge and reinvent the current landscape of school education. Essentially, it aims to challenge archaic norms where the teacher assumes a central agency and offers conventional instruction through established learning aids such as theoretical lessons and lectures.

Science, Technology, Engineering, and Mathematics—the “Big Four” of the world of education—have established themselves as one of the foremost career streams of the 21st century. However, owing to its interdisciplinary nature, it is essential for practitioners of this stream to have hands-on knowledge in addition to problem-solving abilities.

In order to excel beyond standard expectations of STEM education, students who display above-average intellect and merit can often receive augmented skills through STEM learning setups. The shift from rote learning and primary reliance on dry theoretical input towards an interdisciplinary, problem-solving, real-world orientation is essential to STEM learning. It’s a creative and innovative approach that is evident in the increasing adoption of STEM setups in modern classrooms across educational levels. Most importantly, modern STEM classrooms allow students to learn and apply their skills, maximising what they inculcate into their skillset.

In contrast to conventional classrooms, STEM classrooms need adaptable and mobile setups that allow students to collaboratively work on hands-on projects while applying theoretical knowledge. It allows them to learn the skill of working in cross-functional teams, thereby augmenting collaboration and building team spirit. It helps them adapt to teams while understanding the importance of individual contribution. Such collaborative skill sets are in high demand, especially in industry and professional settings. Thus, STEM learning allows schools to help students adopt hard skills as well as soft skills, making them ready to contribute in professional settings.

Importance of lab furniture in modern STEM classrooms

To enhance and support collaboration in STEM classrooms, it is essential to plan and arrange furniture effectively. When students discuss and perform tasks in and around the classroom, it is important for them to move freely, without too many constraints. For this, the furniture needs to be adaptable and flexible. Suppliers often provide the furniture as a block, which designers further segment into sections that students can rearrange freely. This design offers flexible solutions that can adjust according to students’ requirements.

Specialized furniture for STEM

Octagonal desks by Labkafe have applications in collaborative work, where multiple students can sit around the table facing each other. These desks remove spatial and logistical constraints often faced by students in a linear seating setup. Effective lab design can also greatly improve productivity. For example, teachers can set up temporary removable partitions and place or remove them as needed. Thus, they can segment or unite the room based on the task. Designers arrange gas, electricity, and wiring lines around the perimeter to minimize distractions and enhance mobility.

Lab furniture solutions can improve outputs in STEM classrooms because they can be designed and installed depending on the school’s and students’ needs. It can provide handy power outlets on the lab furniture itself, which is necessary as STEM classrooms require advanced electronic and digital devices like TVs and display boards, VR devices, scanners, and 3D printers. Labkafe provides 3D printers for a variety of learning applications. In addition, STEM learning requires additional miscellaneous items that need storage space.

Individual labelled storage bins or cabinets can help organise miscellaneous items so they are easily accessible, and students don’t have to search for items when working on projects. Labkafe offers excellent storage solutions with lab furniture suited for STEM classrooms. These allow users to store and use cumbersome appliances and equipment in a simple and ergonomic manner.

Best lab furniture solutions for optimum productivity

The best lab furniture solution for your classroom will depend on the specific requirements of your classroom projects. Basic building projects can be supported by glass or melamine worktops. However, chemical experiments might require acid-resistant, durable worktops that can withstand harsh substances.

PVC is a highly resistant worktop and one of the best lab furniture solutions for STEM classrooms. It is used in higher education setups focusing on hydrofluoric acid applications. Labkafe offers a plethora of design and worktop solutions to choose from. We allow you to optimize the setup according to your needs.

Creative collaborative tables are essential for STEM setups. They can be adjusted and moved around, much like a puzzle. This enables you to rearrange setups on the workbench throughout the room. This allows students to bring together cross-functional teams by setting up workbenches in a way that suits them.
Labkafe offers a variety of PVC worktops that can withstand harsh chemicals and repeated cycles of cleaning and disinfection. We also provide a variety of lab furniture necessary for STEM classrooms. Our team of experts can tailor solutions uniquely for your STEM classroom as needed. Contact us today to set up the best lab furniture for your STEM classroom!

The post Best Lab Furniture Solutions for Modern STEM Classrooms appeared first on Labkafe Blog.

In this Spirogyra plant biology identification experiment, we aim to identify with reasons and study the morphology of Spirogyra, using representative prepared specimen slides.

Principle of the Spirogyra plant biology identification experiment

Morphology is the study of the characteristic features of a species. It can involve the study of external features, such as shape, structure, color, pattern, and size, which is called eidonomy, or the internal features, which pertain to anatomy. Morphological studies are essential for the identification and classification of organisms because they help highlight specific characteristics that may be unique to a particular species.

Requirements for conducting the Spirogyra plant biology identification experiment

Permanent slides of Spirogyra, prepared and preserved in advance, required for observation and recording. To purchase them, visit Labkafe. Spirogyra can be collected from a pond. Usually, it forms a silky, slippery, green-colored layer on the surface of the pond, which is colloquially called scum. If researchers collect the sample in advance, they can preserve it using a mixture of Formalin, Acetic acid, and Alcohol (FAA).

Important concept

FAA is a type of fixative that helps preserve the morphology of tissue structures, keeping them similar to those of living tissue. Since this study focuses on morphology, it is important to maintain the integrity and structure of the tissue as it appears in its natural environment, such as in a pond. This highlights the importance of FAA, which effectively preserves tissue morphology. Although the cytoplasm is not well-preserved, FAA does a good job of maintaining the overall tissue organization.

Recipe:

50 ml ethanol

5 ml glacial acetic acid

10 ml of 40% formaldehyde

35 ml distilled H₂O

To purchase components, contact experts at Labkafe.

Since Spirogyra is more complex than single-celled organisms, fixation takes a relatively long period—about 24 hours. A vacuum environment enhances fixation by removing air bubbles from within the tissue, allowing the fixative to penetrate deeply into the sample.

Observations of the experiment

1. The specimen is green in color.
2. The specimen is unbranched, filamentous and slimy to touch.
3. Each filament is composed of a large number of long, cylindrical cells placed one above the other in a single row.

Spirogyra (illustration) [Source- NCERT]

Spirogyra (under the microscope) [Source- Wikipedia]

Note-

To become long filaments, single spirogyra cells link together, end-to-end, forming strands up to several centimeters in length. The individual, oblong, cells that make up the filament strands are 10-100 micrometers in length.

4. The cells of the specimen are characterized by long, spiral, ribbon-shaped chloroplasts with several pyrenoids.

Note-

A chloroplast is an organelle that performs photosynthesis in plant and algal cells, converting sunlight into chemical energy.

Pyrenoids are microcompartments that researchers universally find in the photosynthetic plastids, such as chloroplasts, of various eukaryotic algae. These microcompartments contain an enzyme called ribulose-1,5-bisphosphate carboxylase/oxygenase (Rubisco) and, additionally, play a pivotal role in facilitating CO2 assimilation through CO2-concentrating mechanisms (CCMs).

5. A single large vacuole is visible.

Note-

The term “vacuole” means “empty space”. They store food or other nutrients required for cell survival and store waste products before disposal, thereby protecting the entire cell from contamination.

6. Conjugation tubes formed between the cells of two different filaments may also be found when in reproductive phase.

Note-

In sexual reproduction through conjugation, two filaments align side by side, and then cells from each filament form conjugation tubes. The tubes elongate and fuse to create a conjugation canal, which allows the cytoplasm of one cell to pass through and fuse with the other cell’s cytoplasm.

Systematic position of algae Spirogyra

• Kingdom – Plantae
• Division – Thallophyta
• Class – Chlorophyceae

Inference and conclusion

Spirogyra is a green alga that floats on the surface of ponds. Researchers noted various unique features of the algae during the experiment. Using this information, they can later identify samples of the algae.

The post Spirogyra plant biology experiment class 12 appeared first on Labkafe Blog.
